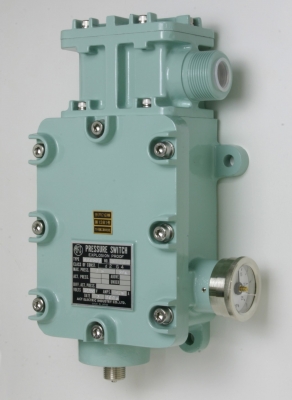

BV-E500 <耐圧防爆タイプ>
特徴 Features
●耐圧パッキング方式で配線の場合、キャップタイヤケーブルの外形は11.5mmを標準とします。
規格外は電線外径をご指示ください。(電線グランドは標準外となります。)
●設定目盛はMpaで、外部より簡単に可変できる構造となっています。
●本体及び端子箱のケース材質はアルミ合金(AC7-A)で、このクラスでは軽量化されています。(屋外にて使用の場合、別途ご指示ください。)
●The body is constructed for pressure resistance, electrical connection used standard cable gland for core OD 11.5mm wires.
Contact us when differences wires are used.
●The construction allows the easy adjustment of the pressure extenally.The calibration is indicated in MPa,
●Body made of aluminium alloy(AC7-A) material for light weight requirement.
Please consult us if used for outdoor application.
規格外は電線外径をご指示ください。(電線グランドは標準外となります。)
●設定目盛はMpaで、外部より簡単に可変できる構造となっています。
●本体及び端子箱のケース材質はアルミ合金(AC7-A)で、このクラスでは軽量化されています。(屋外にて使用の場合、別途ご指示ください。)
●The body is constructed for pressure resistance, electrical connection used standard cable gland for core OD 11.5mm wires.
Contact us when differences wires are used.
●The construction allows the easy adjustment of the pressure extenally.The calibration is indicated in MPa,
●Body made of aluminium alloy(AC7-A) material for light weight requirement.
Please consult us if used for outdoor application.
